Natutec Vegetable Frame

Testimonials

Downloads

Uniform and efficient distribution of natural enemies and no impact on the quality of natural enemies
Different natural enemies can be applied in one operation and more efficient than manual application
Tailor-made to the specifications of the greenhouse

Find a Koppert dealer Get in touch with us

Jump to:
Use for
Product details
Directions for use

Use for

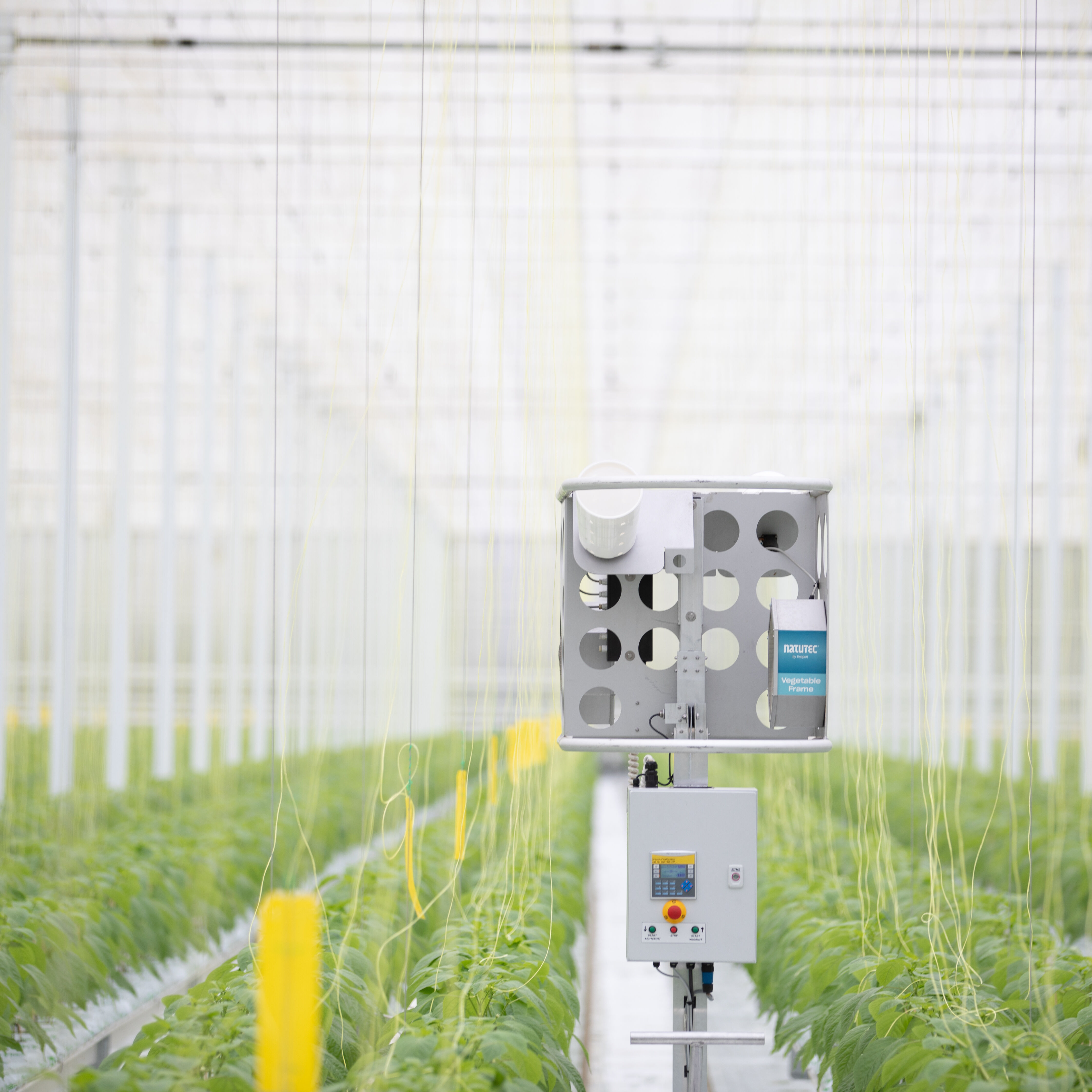

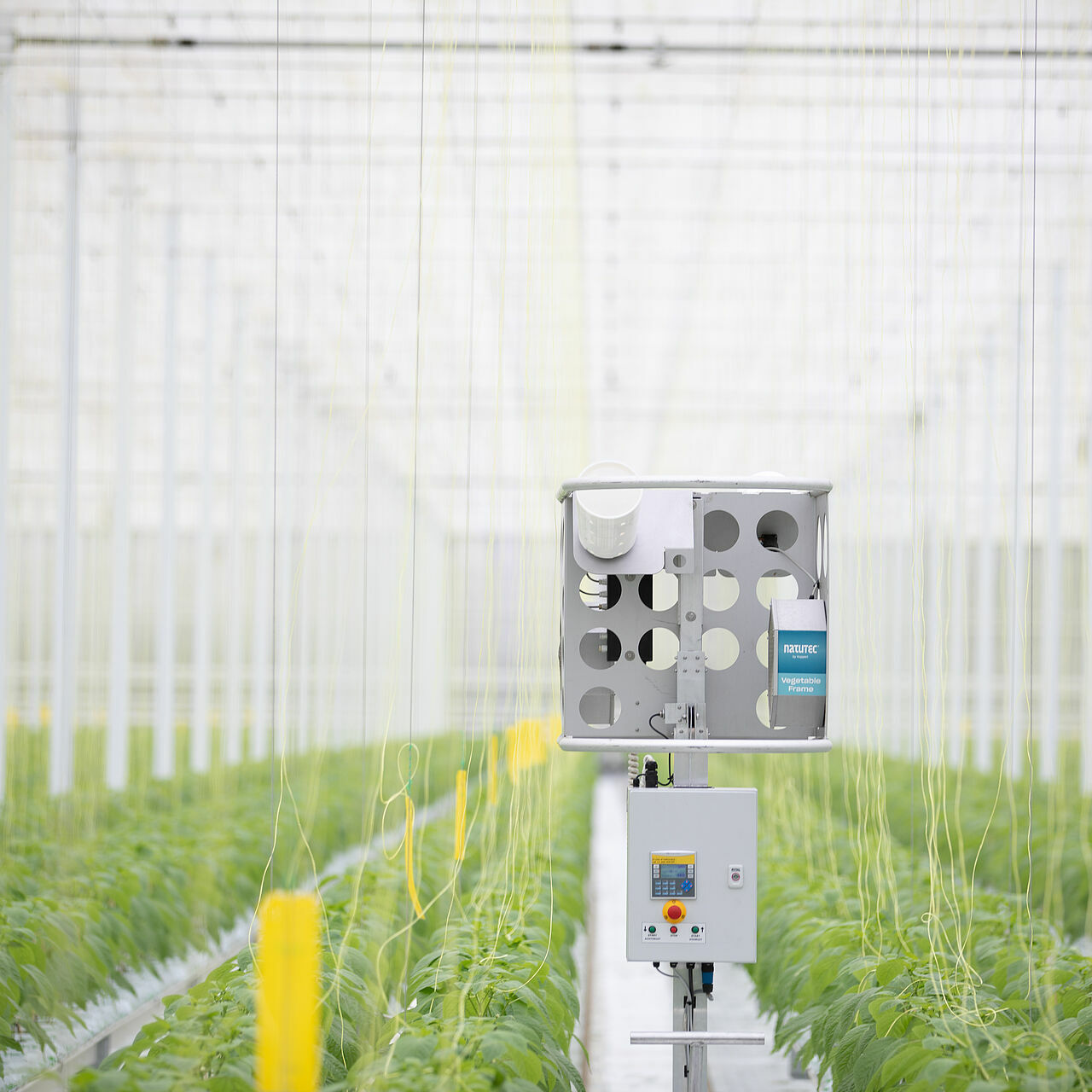

Use the Natutec Vegetable Frame for the distribution of natural enemies in high-wire crops. The Natutec Vegetable Frame can be used for field distribution on two sides of the path. It is equipped with a protection ring around the frame to avoid damage of the high-wires and crops.

The general conditions of Koppert (Koppert B.V. and/or of its affiliated companies) apply. Only use products that are permitted in your country/state. Koppert cannot be held liable for unauthorized use. Koppert is not responsible for any damages or loss of performance resulting from improper storage, maintenance, or use beyond the recommended guidelines.

Product details

Mode of action

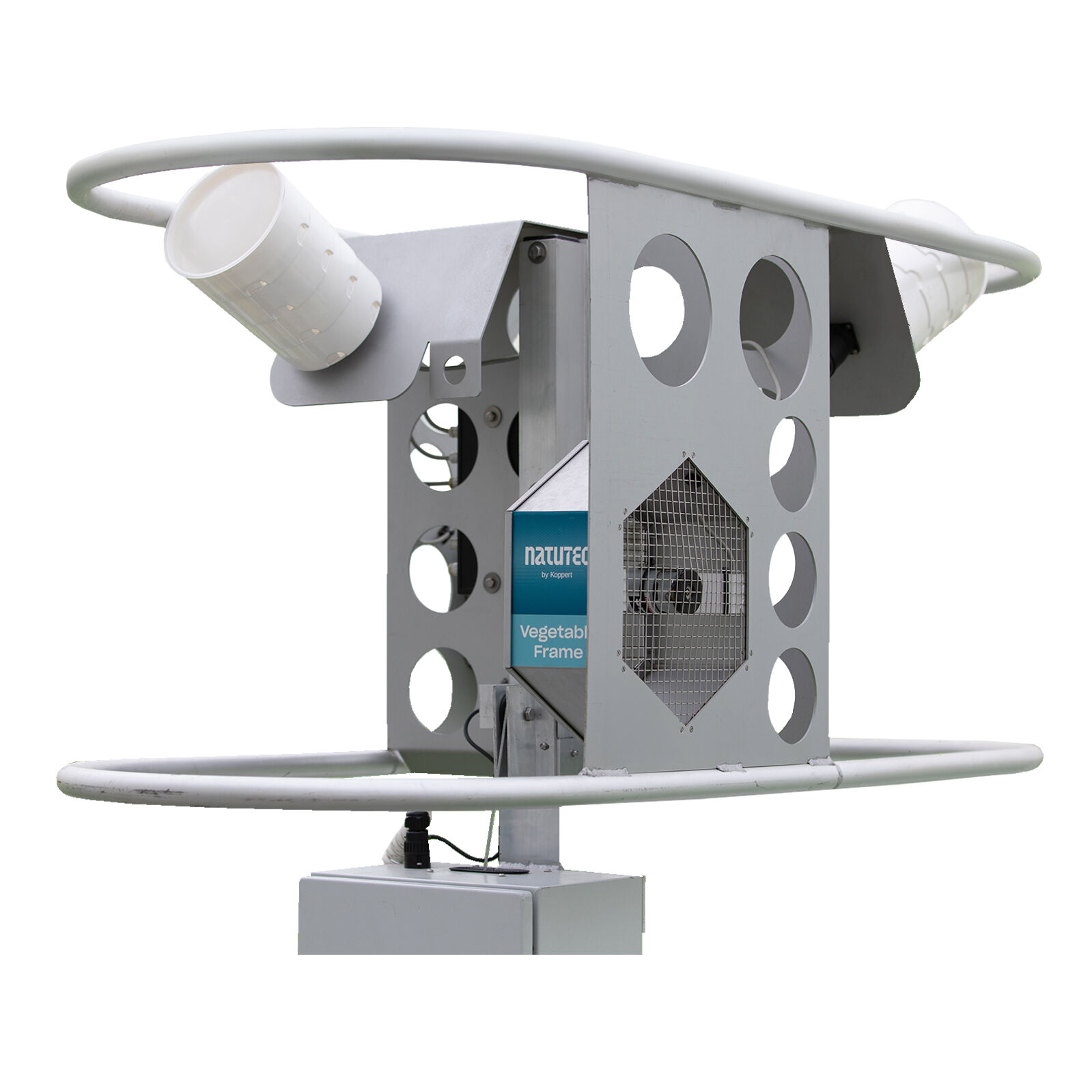

The Natutec Vegetable Frame is mounted on a picking truck. The innovative combination of two blowers, one on each side, ensures a uniform release of carrier material containing natural enemies. The airflow from the fan guarantees a uniform distribution of this material up to a distance of 2*4 metres from the Natutec Vegetable Frame. The protection ring around the frame, protects all the high-wires cultivation and cables in the field.

Product specifications

Product components

The Vegetable Frame consists of the following components:

Two blowing devices on a standard which can be mounted on a picking truck
One protection ring to protect all the plant-wires and cables
Battery (24 Volt) with charger (the battery of the picking truck can also be used)
Two adjustable dosing pots and an adjustable mixing pot
Ear protector and mask

Volume of dosing pot/drum

3 litres.

Range

8 metres (4 metres on both sides).

Directions for use

Application

Secure the Natutec Vegetable Frame on the picking truck
Select the required dosing pots
Adjust the size of the holes to the required dosage based on the information provided in the table on the underside of the pot
Fill the dosing pots with the material to be released and close the lid
Place the fully charged battery or connect the vegetable frame to the battery of the picking truck
Connect the cable to the battery
Attach the dosing pots to the revolving head of the blowers
Turn on the switch of the Natutec Vegetable frame to start releasing the material
Drive the picking truck over the path

Storage conditions

Store the Natutec Vegetable Frame and accessories in a dry and dust-free area. The Vegetable Frame can be stored in the supplied case. Always charge the batteries after use and leave them plugged in.
